Filters Screen Steel 2" to 24"

Amiad New Water Steel Filters

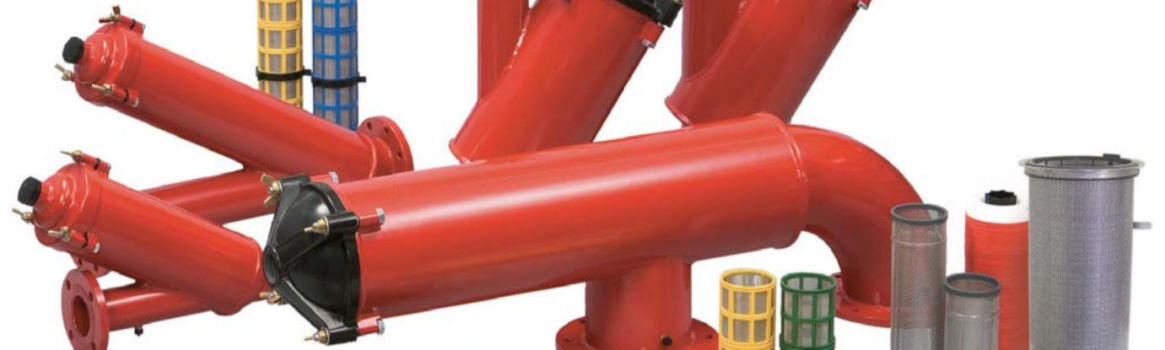

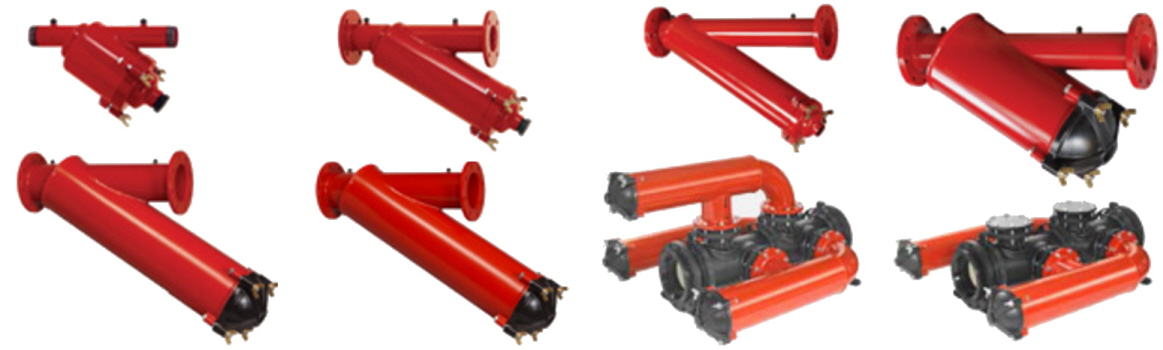

Amiad Steel Metal Filters With their various filter elements, Amiad’s all purpose steel filters are made for wide range of filtering applications and filtration degrees and are easy to install and maintain. They are made of carbon steel with high quality polyestercoating. Stainless steel housings are also available. Amiad steel filters need no tools for dismantling or extracting the filter element from the filter housing for rinsing. Visual monitoring the status of the filter element without disrupting the water flow is easily done with Amiad’s innovative clogging indicator connected to the filter’s pressure check points. Amiad steel filters can be upgraded to semi-automatic operation by adding one of Amiad’s exclusive, Brushaway or Scanaway Semi-Automatic Flushing assemblies.
Screen Steel Filters 2" to 24" Technical Brochure

ex Shipping kg
    Delivery time:6-10 W Days
Add to cart

2" Screen Manual Steel Filter
Filtration grades: 80 to 500 Micron [200 to 30 mesh]
Amiad Screen Filters Spare Parts

Filtration area: Weavewire screen  465 cm2  (72
Maximum flow rate* 25 m3/h [110 US gpm]
Max. working pressure 10 bar (150 psi)
Connections: BSTD, or NPT threads

3 Steel Manual Screen Filter

Amiad
031001-000014
ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart

3" Manual Steel Filter
Optionally: Scanaway or Brushaway cleaning mechanisms.

Scanaway or Brushaway*
*Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh]

irrigation screen filtration.
Amiad Screen Filters Spare Parts

Stainless steel Screen
Filtration area: 1430 cm² (144 in²)
Max. Flow Rate: 50 m3/h (220 gpm)
Max. Working Pressure: bar ( psi)
Connections: BSTD, DIN or ASA Flanges
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

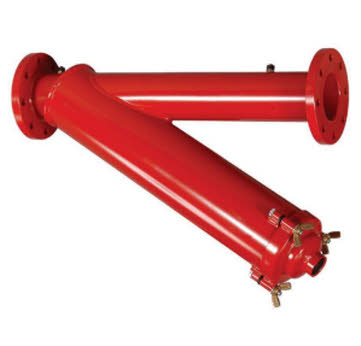

4"C Manual Steel Filter

Optionally: Scanaway or Brushaway cleaning mechanisms.
Scanaway or Brushaway*
*Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh]

irrigation screen filtration.

Stainless steel Screen
Filtration area: 2175 cm² (337 in²)
Max. Flow Rate: 80 m3/h (282 gpm)
Max. Working Pressure: bar ( psi)
Connections: BSTD, DIN or ASA Flanges.
ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart

4"S Manual Steel Filter
Optionally: Scanaway or Brushaway cleaning mechanisms.

Scanaway or Brushaway*
*Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh]

irrigation screen filtration.

Stainless steel Screen
Filtration area: 2740 cm² (425 in²)
Max. Flow Rate: 100 m3/h (352 gpm)
Max. Working Pressure: bar ( psi)
Connections: BSTD, DIN or ASA Flanges.
ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart
6" C Short Manual Steel Filter
Optionally: Scanaway or Brushaway cleaning mechanisms.

Scanaway or Brushaway*
*Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh]

irrigation screen filtration.

Stainless steel Screen
Filtration area: 2740 cm² (425 in²)
Max. Flow Rate: 160 m3/h (704 gpm)
Max. Working Pressure: bar ( psi)
Connections: BSTD, DIN or ASA Flanges.
ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart

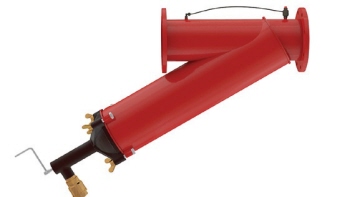

6"S Super Manual Screen Steel Filter
Optinally:

Scanaway or Brushaway cleaning mechanisms.

Scanaway or Brushaway*
*Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh]

irrigation screen filtration.

Stainless steel Screen
Filtration area: 5720 cm² (887 in²)
Max. Flow Rate: 160 m3/h (704 gpm)
Max. Working Pressure: bar ( psi)
Connections: BSTD, DIN or ASA Flanges.

8 Steel Manual Screen Filter

Amiad
031008-000011
ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart
8"S Super Manual Screen Steel Filter
Optinally:
Scanaway or Brushaway cleaning mechanisms.

Scanaway or Brushaway*
*Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh]

irrigation screen filtration.

Stainless steel Screen
Filtration area: 5720 cm² (887 in²)
Max. Flow Rate: 300 m3/h (1320 gpm)
Max. Working Pressure: bar ( psi)
Connections: BSTD, DIN or ASA Flanges.
ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart
8" Super Modular Manual Screen Filter
Optional:
Scanaway or Brushaway cleaning mechanisms.

*Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh]
irrigation screen filtration.

Stainless steel Screen
Filtration area: 5720 cm² (887 in²)
Max. Flow Rate: 300 m3/h (1320 gpm)
Max. Working Pressure: bar ( psi)
Connections: BSTD, DIN or ASA Flanges.
