hydro-pc integral dripline

Drip-line Hydro PC & HydroPCD No Drain No Leak

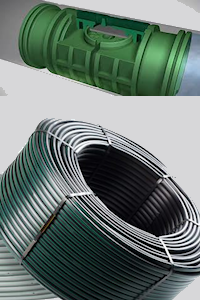

The exclusive hydropc integral dripline
with incorporated flow regulated cylindrical drippers

hydro-pc, by rivulis irrigation, rivulis-irrigation.com, guarantee a wide, efficient labyrinth leading the water into a flow control cell, where a special diaphragm compensate the stream, and keeps a stable flow rate at changeable inlet pressures. IG hydropc drip line is highly resistant to clogging. The dripper inlet filter, located closer to the tube center, guarantees an excellent constant flushing treatment. The relatively small diameter dripper-line makes a better drip irrigation efficiency. Decrease retained water in the system, causing a shorter refilling time with less redundant drained water, on sloppy terrains, no excessive water wetting in the lower parts of the field. Competitive low cost and big saving on transportation volume and weight.
Applications: for hydro-pc: All kind of crops on sloping terrain. Or where long run dripper-lines are a must.

Hydro PC VIDEO
>> Hydro PC design data

> HydroPCND No drain brochure

HYDRO-PC 12/25 [1/2/25] 1.05 l/h [0.3 gph] 600 m roll

Rivulis Plastro
12/25-02040
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

Hydro PC, Flow-regulated integral dripline

Hydro PC 12 mm - 600 m [1970 feet] Roll
1.05 l/h [0.3 gph] Flow-regulated hydro pc trickle line integral dripline. The exclusive 12mm integral dripline with incorporated flow regulated cylindrical drippers. - Highly durable dripline. Its small diameter improves its resistance to physical damage. - Conforms to emission uniformity standard ISO 9261
>> Hydro PC 12 Leaflet

>> Hydro PC 12 Design data tables

- When ordering, please pay attention  to the online discount you get

  • More

Specifications: - PC 12 mm [ 15/32"] - 1.05 l/h [0.3 gph]
- Maximum operating pressure according to wall thickness: 0.6 mm [0.025 "] : 2.5 bar [36 psi] - Color: black - Emitter spacing: from 15 to 150 cm [6" to 60"]

Hydro PC Flow-regulated integral dripline

PC mechanism, The diaphragm closes in flat position and the driplines are drained. The exclusive 12mm integral dripline with incorporated flow regulated cylindrical drippers.



Metric
Hydro PC & PCND 12 mm - 1.05 lph
Maximum Recommended Dripline Length (m) on Flat Terrain
Pressure  Emitter Spacing (meter)
Bar 0.15* 0.2 0.3 0.4 0.5 0.6 0.75 1
1 28 36 52 65 78 90 107 132
2 49 63 90 114 137 158 189 234
2.5 55 70 101 129 154 178 212 264
3.5 60 77 110 140 169 195 232 289
Imperial
Hydro PC & PCND 12 mm - 0.3 gph
Maximum Recommended Dripline Length (feet) on Flat Terrain
Pressure  Emitter Spacing (inch)
Psi 3.9 7.9 11.8 15.8 19.7 23.6 31.5 39.4
15 92 118 171 213 256 295 351 433
29 161 207 295 374 449 518 620 768
36 180 230 331 423 505 584 696 866



Comprehensive product information…


<< Back to products group page

HYDRO-PC 16/35 [5/8/35] Integral dripline 400 m roll

Rivulis Plastro
16/35-02040
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
pressure compensated integral drip-line
Hydro pc Flow regulated pre injected dripline

Hydro PC 16 mm - 400 m [1300 feet] Roll
Available emitter flow rates: 1.2 - 1.6 - 2.2 and 3.6 l/h [0.3 -0.4 - 0.6  and 0.95 gph]

Flow-regulated hydro pc trickle-line integral dripline with 2 outlets. The widespread 16 mm integral dripline with incorporated flow regulated cylindrical drippers. - Highly durable dripline. Its small diameter improves its resistance to physical damage. - Conforms to emission uniformity standard ISO 9261

>> Hydro PC leaflet
>> Hydro PC design data
- When ordering, please pay attention  to the online discount you get

HYDRO-PC 17/35 [11/16/35] Integral dripline 350 m roll

Rivulis Plastro
17/35-02040
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
pressure compensated integral driplinedripline
Hydro pc Flow regulated pre injected dripline

Hydro PC 17 mm - 350 m [1150 feet] Roll
Available emitter flow rates: 1.2 - 1.6 - 2.2 and 3.6 l/h [0.3 -0.4 - 0.6  and 0.95 gph]

Flow-regulated hydro pc trickle-line integral dripline with 2 outlets. The unique 17mm integral dripline with incorporated flow regulated cylindrical drippers. - Highly durable dripline. Its small diameter improves its resistance to physical damage. - Conforms to emission uniformity standard ISO 9261

>> Hydro PC leaflet
>> Hydro PC design data
- Maritime container capacity: 20' = 140 rolls.  40' = 340 rolls
- When ordering, please pay attention  to the online discount you get

HYDRO-PC 20/35 [3/4/35] Integral dripline 300 m roll

Rivulis Plastro
20/35-02040
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
pressure compensated integral drip-line
Hydro pc Flow regulated pre injected dripline

Hydro PC 20 mm - 300 m [985 feet] Roll
Available emitter flow rates: 1.2 - 1.6 - 2.2 and 3.6 l/h [0.3 -0.4 - 0.6  and 0.95 gph]

Flow-regulated hydro pc trickle-line integral dripline with 2 outlets. The special 20 mm integral dripline with incorporated flow regulated cylin drical drippers. - Highly durable dripline. Its small diameter improves its resistance to physical damage. - Conforms to emission uniformity standard ISO 9261

>> Hydro PC leaflet
>> Hydro PC design data
- Maritime container capacity: 20' = 130 rolls.  40' = 260 rolls
- When ordering, please pay attention  to the online discount you get

Hydro Clip Blue 16 mm - 5,000 pack

Rivulis Plastro
101003164
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
IG Blue HYDROCLIP FOR 16 mm 5,000 pack
IG Blue HYDROCLIP FOR 16 mm, Hydro-Clip enable to block temporarily specific drippers water outlets, along  integral driplines, for use with : hydro-pc, hydrogol.

Hydro Clip Red 17/20 mm - 5,000 pack

Rivulis Plastro
101003163
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
IG RED HYDROCLIP FOR 17mm & 20mm
5,000 pack
IG RED HYDROCLIP FOR 17mm & 20mm, Hydro-Clip enable to block temporarily specific drippers water outlets, along  integral driplines, for use with : hydro-pc, hydrogol.
