Hydrocyclone Sand separators

Hydro-cyclone, Sand separators. Centrifugal [Filters] Sand separation for: Irrigation , Industrial & Potable Water

Hydrocyclone concept of sand seaparation

Hydrocyclone concept
Super XL Sprinkler standard set, 10 units pack

Hydrocyclone, Also known as sand separator, centrifugal filters are mainly for the removal of particles such as sand, and other solids from the irrigation water. They are ideal for situations where a pile of sand, is present in water.

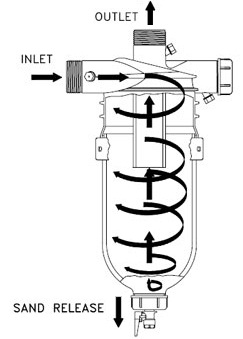

• The units are mounted in a vertical position > Water enters through the tangential inlet producing a downward spinning movement. Sediments are pressed against the filter body by centrifugal force > Sediments accumulate at the bottom of the filter > In order to flush accumulated sediments, a drain valve is installed at the bottom of the unit or the collection manifold.

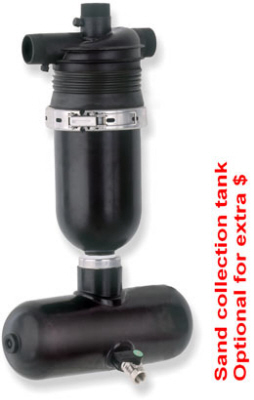

Applications • Sand and Gravel Separation from deep well pumping • Pre-filtering of water supplied to laboratories and industry • Pre-filtering of drip irrigation and micro sprinkler systems  • Protective sand removal.  Prevents wear and tear on sprinkler nozzles. Optional sand collection tank, or collection manifold in the sand separation batteries. sand separators batteries manual

ex Shipping kg
    Delivery time:30-60 Days
Add to cart
2" [50 mm] Sand separator hydro-cyclone Plastic water filter by arkal.

Arkal 2" sand separator Hydro cyclone. Plastic filter for sand. [centrifugal] Threads fits both BSP and NPT
Filtration Flow rate:
Minimum flow rate: 15 m3/h [88 gpm] Maximum flow rate: 25 m3/h [110 gpm]
Cat no. 1218 0001 & 1218 0009
2" Sand Separator Product Brochure

More details

Sand separation modular designed batteries hydrociclones



Sand separator batteries include:
Sand separators.
Sand collection manifold.
Inlet and outlet manifolds.
All connectors and support legs.
Air release valve, Pressure Gouge, Sand flushing hydraulic valve.
Electronic flushing controller is optional and is NOT included in the standard product. hydrocyclones sand separators batteries operation manual

sand separation batteries

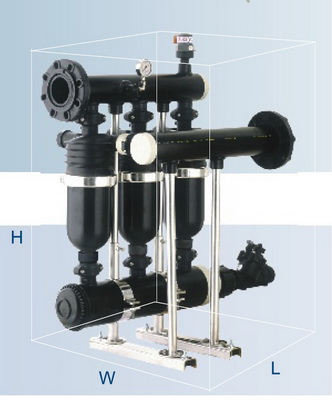

Technical Data Batteries  2 Units   3 Units   4 Units   5 Units   6 Units   7 Units   8 Units

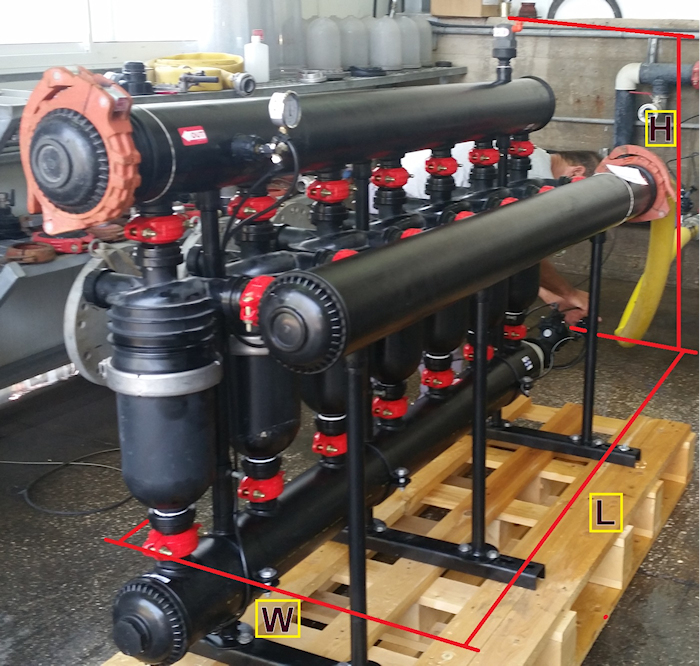

 Length [L] 665.5mm 940.5mm 1215.5mm 1490.5mm 1765.5mm 2040.5mm 2315.5mm
26.2'' 37.0'' 47.9'' 58.7'' 69.5'' 80.3'' 91.2''
 Height [H] 1240.0mm 1240.0mm 1240.0mm 1240.0mm 1240.0mm 1240.0mm 1240.0mm
48.8'' 48.8'' 48.8'' 48.8'' 48.8'' 48.8'' 48.8''
 Width [W] 607.0mm 607.0mm 607.0mm 607.0mm 607.0mm 607.0mm 607.0mm
23.9'' 23.9'' 23.9'' 23.9'' 23.9'' 23.9'' 23.9''
 Weight 65.0 kg 115.0 kg 145.0 kg 175.0 kg 205.0 kg 235.0 kg 265.0 kg
143.3 lbs 253.5 lbs 319.7 lbs 385.8 lbs 451.9 lbs 518.1 lbs 584.2 lbs



Sand Separator Battery, 2 units

Arkal
201000-000012
ex Shipping kg
    Delivery time:30-60 Days
Add to cart

Sand Separator Battery, 2 units. assemble with PP 4" manifolds and fittings, plastic hydrocyclone. Arkal by Amiad.
Working pressure 10 Bar [ 145 PSI]
Flow rate range:
- Min. M3/H 30 Max. M3/H 50
- Min. GPM 176 Max. GPM 220
Old cat. 4517 0402U2120

Sand Separator Battery, 3 units

Arkal
201000-000048
ex Shipping kg
    Delivery time:30-60 Days
Add to cart

Sand Separator Battery, 3 units. assemble with 4" PP manifolds and fittings, plastic hydrocyclone. Arkal by Amiad.
Working pressure 10 Bar [ 145 PSI]
Flow rate range:
- Min. M3/H 45 Max. M3/H 75
- Min. GPM 264 Max. GPM 330
Old cat 4517 0403U2120

Sand Separator Battery, 4 units

Arkal
201000-000022
ex Shipping kg
    Delivery time:30-60 Days
Add to cart

Sand Separator Battery, 4 units. assemble with 4" PP manifolds and fittings, plastic hydrocyclone. Arkal by Amiad.
Working pressure 10 Bar [ 145 PSI]
Flow rate range:
- Min. M3/H 60 Max. M3 100
- Min. GPM 352 Max. GPM 440
Old cat 4517 0404U2120

Sand Separator Battery, 5 units

Arkal
201000-000050
ex Shipping kg
    Delivery time:30-60 Days
Add to cart

Sand Separator Battery, 5 units. assemble with 6" PP manifolds and fittings, plastic hydrocyclone. Arkal by Amiad.
Working pressure 10 Bar [ 145 PSI]
Flow rate range:
- Min. M3/H 75 Max. M3/H 125
- Min. GPM 440 Max. GPM 550
Old cat 4517 0605U2120

Sand Separator Battery, 6 units

Arkal
201000-000049
ex Shipping kg
    Delivery time:30-60 Days
Add to cart

Sand Separator Battery, 6 units. assemble with 6" PP manifolds and fittings, plastic hydrocyclone. Arkal by Amiad.

Working pressure 10 Bar [ 145 PSI]
Flow rate range:
- Min. M3/H 90 Max. M3/H 150
- Min. GPM 528 Max. GPM 660
Old cat 4517 0606U1220

Sand Separator Battery, 7 units

Arkal
201000-000033
ex Shipping kg
    Delivery time:30-60 Days
Add to cart

Sand Separator Battery, 7 units. assemble with 6" PP manifolds and fittings, plastic hydrocyclone. Arkal by Amiad.

Working pressure 10 Bar [ 145 PSI]
Flow rate range:
- Min. M3/H 105 Max. M3/h 175
- Min. GPM 616 Max. GPM 770
Old cat 4517 0607U2120
Sand Separators Battery 7 Units 175 m3/h drawing

Special Hydrocyclone Battery with Stainless Steel Legs

201000
kg


6" Scanaway Suction Semi Automatic Super Leader Double Screen Filter, with Universal Flanges (fit all standards).
- Filtration grades: 100 to 200 Micron [140 to 80 Mesh]
- Screen Area 2500 cm2 [388 Square Inches]
- Max. Flow Rate 140 M3/h [620 GPM]
- Max. working pressure 10 bar [150 PSI]
Arkal code naming: AKSP6S flanged super leader

sand separation batteries

Sand Separator Battery, 8 units

Arkal
201000-000035
ex Shipping kg
    Delivery time:30-60 Days
Add to cart

Sand Separator Battery, 8 units. assemble with 6" PP manifolds and fittings, plastic hydrocyclone. Arkal by Amiad.
Working pressure 10 Bar [ 145 PSI]
Flow rate range:
- Min. M3/H 120 Max. M3/H 200
- Min. GPM 704 Max. GPM 880
Old cat  4517 0608U2120
