Sigma Pro & Mini Sigma Filters, Automatic Rinse 2" to 8"

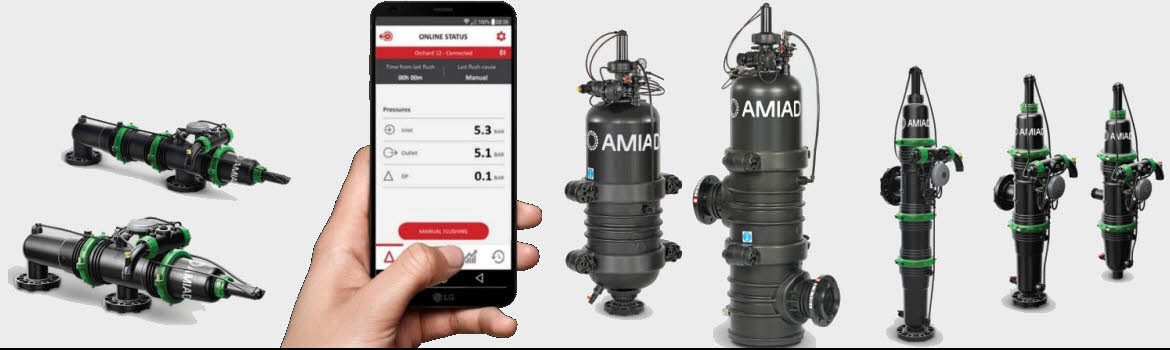

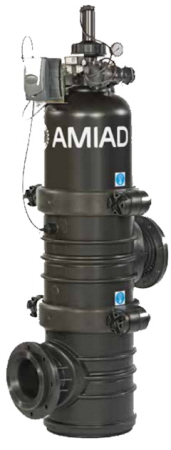

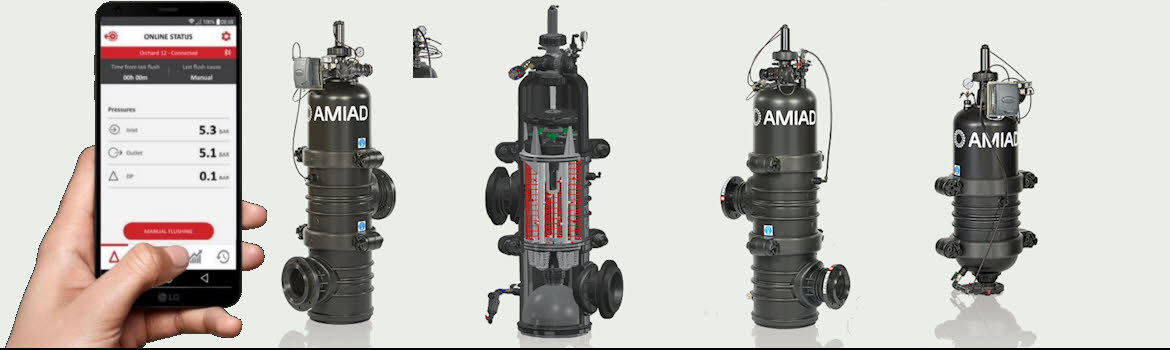

Sigma Pro - Screen technology in akk-polymeric housing. Automatic self-cleaning filter, which combines
Amiad’s superior Suction-Scanning mechanism with a Multi-Screen design, and a new innovative hydraulic turbine. Automatic filtration and water treatment products. Water treatment and sea water filtration.
| SPARE PARTS Mini Sigma & Pro |
| Sigma features: • 10 to 280 M3/h [44 to 1233 gpm] • 50 to 500 micron [30 to 300 mesh] • Based on Amiad’s proven suction-scanning screen technology • Very Large Screen Area • High flow rate per unit • Made of polymeric materials; fully resistant to corrosion and most fertilizers (PH > 5) • Short and efficient self-cleaning process • Water treatment and filtration automatic solutions | • Very low energy consumption during flush • Small footprint compared to other automatic filters • Unique design, easy to maintain, few tools required • Applications: Agriculture Irrigation open fields, landscape, green house, aquaculture • Optional electronic controller AC or DC * Patent pending • A good solution for Sea water filtration |
Sigma automatic filtration video clip | Mini Sigma Filters Brochure |
Click to download the 3" Mini sigma Filter DWG files:

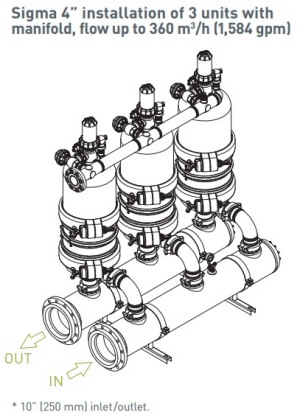

How the Sigma Filter Works
General
The Amiad “Sigma” filter is an automatic filter, with multiple screens operated by a single hydraulic turbine mechanism.
With a capacity up to 120 m3/h (528 gpm) and from 80-300 micron filtration degree. Inlet/Outlet connections are
100 mm (4”) diameter, and exhaust valve is 50 mm (2”).
The Filtration
Raw water enters from the filter inlet and passes through the multi-screens. Clean water flows through the filter
outlet. The gradual dirt buildup on the inner screen surface causes a filter cake to develop, with a corresponding
increase in the pressure differential across the multi-screens. A pressure differential switch (hydraulic or electric)
senses the pressure differential and when it reaches a pre-set value, the self-cleaning process begins.
The Control System
The “Sigma” operation and cleaning cycle is controlled and monitored by a hydraulic rinse control, or an electronic
battery /AC controller.
During the self-cleaning cycle the rinse control operates the exhaust valve by means of an hydraulic command, and
when the cycle is complete, it automatically closes the exhaust valve and waits for the next cycle. In the case of the
electronic controller, the self-cleaning cycle is triggered by the DP switch, then the AC or DC controller switches the
solenoid to open or close the exhaust valve by means of a hydraulic command, when cycle is complete, the controller
will shut the exhaust valve and wait for another cleaning command.
The self-cleaning cycle begins under any one of the following conditions:
1. Receiving a signal from the Pressure Differential Device - which is preset at 0.5 bar.
2. Time interval parameter set at the controller (electronic controller only).
3. Manual Start, triggered by 3 way ball valve or via electronic controller keypad.
The electronic controller also provides:
• Flush cycles counter
• Alerts output – low battery, DP cycle
