Arkal by Amiad Spin Klin Disc Filtration Solutions
- Holds disc stack for micron-precise filtration of solids. Spin Klin technology
Corrosion-resistant spine and housing.
- Innovative depth filter design captures and retains large amounts of solids - for longer filtration cycles.
- Short, efficient backwash process - saves water and energy. Innovative new spine for all sk product line
- Easy and simple operation.
- Long-term operation with little maintenance.
- Maximum working pressure 10 Bar [125 psi]
- Controllers for the spin clean batteries are optional for all assembled batteries, if you have irrigation controller you might order the spin klin without  a controller. spin-klin
Spin-klin self cleaning disc filtration VIDEO
Controllers for Spin Klin Disc Filtration AMC6 users guide
Read more about Spin Klin Technology
Arkal semi precious stone battery naming

ex Shipping kg
    Delivery time:21 days
Add to cart

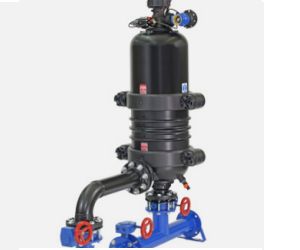

> 20 m3/h [5,300 gph]  2" Compact Spin Klin automatic filtration

2" Spin klin standalone controlled self-cleaning disc filter.
threads fit both BSP and NPT standards.
Spin Klin Technology.
Max. Flow rate: 20 M3/h to [5,300 gph]
Filtration grades range: 40 to 600 mesh [400 to 20 Mic]
Spin Klin battery shipped for Plug & Play installation, Includes: Flushing controller Pressure relay, Solenoid, Tubing, Valves, HDPE and PP Manifolds.
2" compact spin klin disc filter installation operation maintenance guide

2" compact spin klin disc brochure

More details
ex Shipping kg
    Delivery time:21 days
Add to cart

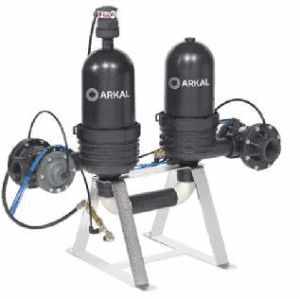

> 20 m3/h [5,300 gph]  2" Air assisted Compact Spin Klin automatic filtration

Air Assisted 2" Spin klin stand alone controlled self cleaning disc filter.
threads fits both BSP and NPT standards.
Spin Klin Technology.
Max. Flow rate: 20 M3/h to [5,300 gph]
Filtration grades range: 40 to 600 mesh [20 to 400 Mic]
Spin Klin battery shipped for Plug & Play installation, Includes: Flushing controller (220/110 VAC & 12 VDC), Pressure relay, Solenoids, Tubing, Valves, PP Air Tank & Metal Support legs.
2" Air Assisted Compact Spin Klin Technical leaflet

2" Air Assisted Compact Spin Klin Installation and maintenance

Technical leaflet 2" Air Assisted Compact Spin Klin Drawings

More details
Now Only
ex Shipping kg
    Delivery time:21 days
Add to cart

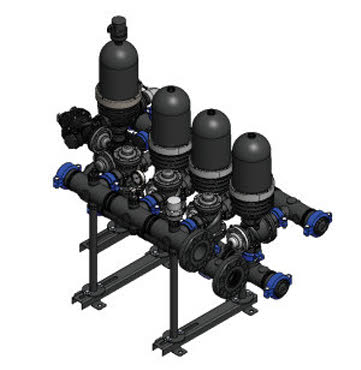

Spin Klin automatic Air Assisted backflush Disc Filtration Battery.
3 x 2" Low pressure Pods. 3" Arkal Universal Flanged Polimeric manifolds.
2" Bermad Plastic flushing Valves 55 Micron PP DW. 8mm AIR connectors for air control. 8mm.
PL.J.G. Support legs. Assembled and tested, packed on a 1200mm x1000mm x 1300mm boxed palette.
110VAC and 12VDC Flushing management Controller. Support legs. assembled and tested.

More details
ex Shipping kg
    Delivery time:21 days
Add to cart

>120 m3/h [32,000 gph] SPIN KLIN BATTERY AMETHYST

Spin Klin battery amethyst with 2" plastic valves, Poly X 2", PP 6" MANIFOLD

Spin Klin filtration Technology
Flow rates range: 40 M3/h  to 120 M3/h [10,600 to 32,000 gph]
Filtration grades range: 40 to 600 mesh [400 to 20 Mic]
Spin Klin battery shipped for Plug & Play installation, Includes: Flushing controller (220/110 VAC & 12 VDC),  Pressure relay, Solenoids, Tubing, Valves, PP Manifolds & Support legs.
Battery is shipped assembled with Manifold upper inlet.
Spin Klin 2" & 3" Brochure   2" Spin Klin Technical Data

More details
ex Shipping kg
    Delivery time:21 days
Add to cart

>210 m3/h [55,000 gph]  SPIN KLIN BATTERY AMETHYST

Spin klin battery amethyst with 3" plastic valves, Poly X 2", PP 6" MANIFOLD

Spin Klin filtration Technology

Flow rates range: 90 M3/h to 210 M3/h [24,000 to 55,000 gph]
Hydraulic plastic valves with 3 way valves
Filtration grades range: 40 to 600 mesh [400 to 20 Mic]
Spin Klin battery shipped for Plug & Play installation, Includes: Flushing controller (220/110 VAC & 12 VDC),  Pressure relay, Solenoids, Tubing, Valves, 6" PP Manifolds & Support legs.
Battery is shipped assembled with Manifold upper inlet.
Spin Klin 2" & 3" Brochure   -    3" Spin Klin Technical Data

More details
ex Shipping kg
    Delivery time:21 days
Add to cart

>960 m3/h [4230 gpm] SPIN KLIN BATTERY AMETHYST

Galxy Spin Klin battery with 4" plastic valves, Poly X 12"  PP MANIFOLD

Spin Klin filtration Technology

Flow rates range: 240 M3/h to 2,500 M3/h [1,000 to 11,000 gpm]
Hydraulic plastic valves with 3 way valves.
Filtration grades range: 40 to 600 mesh [400 to 20 Mic]
Spin Klin battery shipped for Plug & Play installation, Includes: Flushing controller (220/110 VAC & 12 VDC), Pressure relay, Solenoids, Tubing, Valves, 12" PP Manifolds & Support legs.
Battery is shipped assembled with Manifold upper inlet.
Spin Klin Galaxy Technical leaflet

More details
Now Only
ex Shipping kg
    Delivery time:14 Days
Add to cart

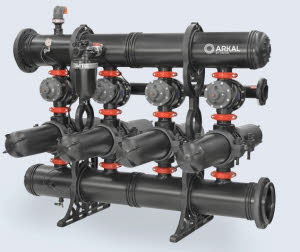

4" Apollo Twin Spin Klin Low Cost Energy.
4" Spin Klin tm Apollo L.C.E
Automatic Low Cost Energy disc filtration system with large filtration area L.C.E systems: • For low pressure where higher pressure is not available or is too costly • Flushes at low pressure using less energy • For low to medium flow rates in a compact footprint   inlet/outlet 250 - 200 mm [10" - 12"]  flow rates 180 - 600 m3/h [790 - 2,640 gpm]  filtration degrees 100 – 400 micron  backwash pressure 1.5 bar [22 psi] features: • Micron-precise depth filtration of solids • Innovative disc technology captures and retains large amounts of solids • Long-term operation with minimal maintenance • Easy and simple operation • Short automatic backwash with regulated water volume for a small water footprint • Compact design
4" Apollo Twin SK LCE Brochure  4" Apollo Twin SK LCE User guide
More details
Now Only
ex Shipping
    Delivery time:14 Days
Add to cart
3" Apollo Angle Spin Klin Low Cost Energy.
3" Spin Klin tm Apollo Angle L.C.E DN80
Automatic Low Cost Energy disc filtration system with large filtration area L.C.E systems: • For low pressure where higher pressure is not available or is too costly • Flushes at low pressure using less energy • For low to medium flow rates in a compact footprint   inlet/outlet 160 - 280 mm [6" - 10"]  flow rates 80 - 320 m3/h [350 - 1400 gpm]  filtration degrees 100 – 400 micron  backwash pressure 1.5 bar [22 psi] features: • Micron-precise depth filtration of solids • Innovative disc technology captures and retains large amounts of solids • Long-term operation with minimal maintenance • Easy and simple operation • Short automatic backwash with regulated water volume for a small water footprint • Compact design    3" dn80 Apollo TAngle SK LCE Brochure
More details
