screen filters for high pressure

Filters Screen Plastic HQ

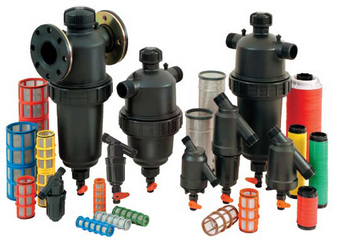

Screen plastic manual filters, Durable high quality filters for irrigation and water wide range of filtration applications. Amiad Screen Filters Spare Parts

SPARE PARTS Semi-Auto & Manual Screen AMIAD

Features:

Durable high quality Plastic filters for wide range of filtration applications.
Interchangeable filter elements for wide range of flow rates, multiple filtration degrees and applications, for irrigation systems and pressurized water network.
Excellent mechanical strength, corrosion resistance and models for chemical durability.
Low pressure loss.
Easy to install and maintain, no tools required for rinsing.
Semi-Automatic Brushaway cleaning available as optional exclusive features Scanaway & Brushaway* mechanism. *Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh]
Wide range of applications for the irrigation, municipal and industrial markets.
Filtration grades Mesh and Micron comparison table

Screen Filters HQ high pressure technical guide

3/4" Filter water, black acetal with SST/316 weavwire screen 35 x 125mm

Amiad
010000-000020
ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart

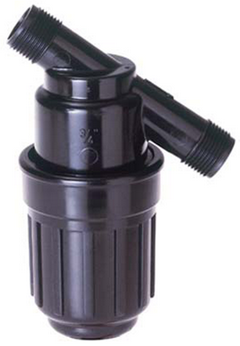

3/4" 20 mm amiad screen water filter.
filtration area 140 SQCM [22 SQIN]
water & irrigation screen filtration
10 bar Polly Acetal Body
Stanless Steel SST/316 Screen
Filtration area: 110 cm² (17 in²) - Max. Flow Rate: 3 m3/h
(13.2 gpm) - Max. Working Pressure: 10 bar (145 psi)
* Consult irrigationglobal.com irrigation systems and filtration systems for optimum flow depending on filtration degree & water quality. Connections: male threads, BSP or NPT Old cat. No.: 01-0702-1131
flushing valve is not included.

1"C Filter water, black acetal, SST316 Screen 35 x 125mm

Amiad
010001-000015
ex Shipping kg
    Delivery time:6 to 10 days
Add to cart

1"C 25 mm amiad screen water filter.
filtration area 140 SQCM [22 SQIN]
water & irrigation screen filtration
10 bar polly acetal body
stainless steel screen


Filtration area: 110 cm² (17 in²)
Max. Flow Rate: 5 m3/h (22 gpm)
Max. Working Pressure: 10 bar (145 psi)
* Consult irrigationglobal.com irrigation systems and filtration for optimum flow depending on filtration degree & water quality. Connections: male threads, BSP or NPT Old cat. No. 01-1002-1131
flushing valve is not included.

1"S Filter Super irrigation, SST Weavwire Screen 60 x 125mm

Amiad
010002-000017
ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart

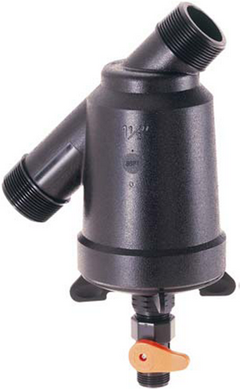

"1S 25 mm amiad screen water filter.  10 Bar Polly Acetal Body.
Filtration area: 200 SQCM [31 SQIN]
water & irrigation high pressure screen filtration
Weavwire Stainless Steel Screen SST/316
Filtration area: 170 cm² (26.3 in²)
Max. Flow Rate: 7 m3/h (31 gpm)
Max. Working Pressure: 10 bar (145 psi)
* Consult irrigationglobal.com irrigation systems and filtration for optimum flow depending on filtration degree & water quality. Connections: male threads, BSP or NPT Old cat. No. 01-1201-1131
flushing valve is included.

11/2"C Filter irrigation compact irrigation, Nylon screen 60 x 125mm

Amiad
AP015C.CA0.0001
ex Shipping kg
    Delivery time:6 to 10 days
Add to cart
1.5" [40 mm] screen water filter.
Filtration area: 200 SQCM [31 SQIN]
water & irrigation high pressure screen filtration

Filtration area: 170 cm² (26.3 in²)
Max. Flow Rate: 15 m3/h (66 gpm)
Max. Working Pressure: 10 bar (145 psi)
* Consult irrigationglobal.com irrigation systems and filtration irrigation systems for optimum flow depending on filtration degree & water quality. Connections: male threads, BSP or NPT Old cat. No. 01-1501-1131

ex Shipping kg
    Delivery time:6 to 10 days
Add to cart

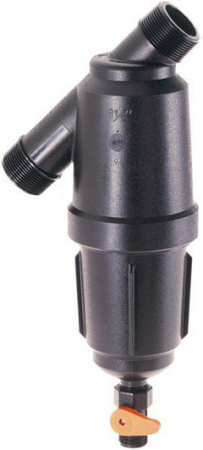

1.5"S 40 mm aniad screen water filter.
Filtration area: 460 SQCM [71 SQIN]
water & irrigation high pressure screen filtration.
Stainless Steel SST316 Screen.
10 Bar Polly Acetal Body
Filtration area: 340 cm² (52.7 in²)
Max. Flow Rate: 15 m3/h (66 gpm)
Max. Working Pressure: 10 bar (145 psi)
* Consult irrigationglobal.com drip irrigation systems for optimum flow depending on filtration degree & water quality. Connections: male threads, BSP or NPT Old cat. No.: 01-1601-1131
More details
ex Shipping kg
    Delivery time:6 to 10 days
Add to cart

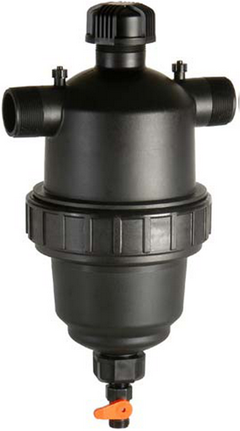

2" 50 mm screen water filter.
Filtration area: 800 SQCM [124 SQIN]
Filtration grades: 80 to 500 Microns [40 to 180 Mesh]

Weavewire screen 110 x 250 mm
Filtration area: 465 cm² (72 in²)  Max. Flow Rate: 25 m3/h (110 gpm)
Max. Working Pressure: 10 bar (145 psi)
water & irrigation high pressure screen filtration
Connections: male threads, BSP or NPT
Click to see same unit as Semi Automatic

More details
ex Shipping kg
    Delivery time:6 to 10 days
Add to cart

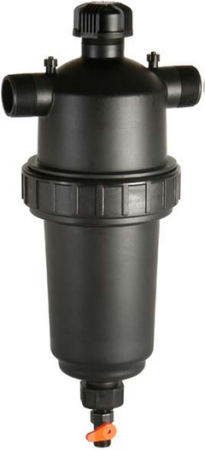

2" 50 mm screen water filter.  irrigation filtration
Filtration area: 1200 SQCM [186 SQIN]
Filtration grades: 80 to 500 Microns [40 to 180 Mesh]

Weavewire screen 110 x 370 mm Filtration area: 700 cm² (108 in²)  Max. Flow Rate: 25 m3/h (110 gpm)
Max. Working Pressure: 10 bar (145 psi)
Connections: male threads, BSP or NPT
Click to see same unit as Semi Automatic

More details
ex Shipping kg
    Delivery time:6 to 10 days
Add to cart

3" 80 mm screen water filter.   irrigation screen filtration
Filtration area: 1200 SQCM [186 SQIN]
Filtration grades: 80 to 500 Microns [40 to 180 Mesh]

Weavewire screen 110 x 370 mm Filtration area: 700 cm² (108 in²)
Max. Flow Rate: 50 m3/h (220 gpm)
Max. Working Pressure: 10 bar (145 psi)
Connections: male threads, BSP or NPT.
Click to see same unit as Semi Automatic
More details
ex Shipping kg
    Delivery time:6 to 10 days
Add to cart

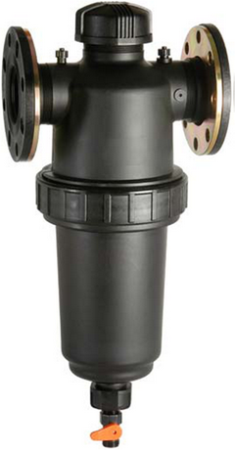

3" [80 mm] T Universal flanges, Screen water filter.  irrigation screen filtration.
Filtration area: 1200 SQCM [186 SQIN]
Filtration grades: 80 to 500 Microns [40 to 180 Mesh]

3"T Flanged Universla, Manual Screen Filter by amiad
Universal flanges fits all flange standards.
Weavewire screen 110 x 370 mm
Filtration area: 700 cm² (108 in²)
Max. Flow Rate: 50 m3/h (220 gpm)
Max. Working Pressure: 10 bar (145 psi)
Connections: Universal Flanges (fit all standards).
Click to see same unit as Semi Automatic
More details
ex Shipping kg
    Delivery time:9 days
Add to cart
3" [75 mm] Twin Lite TDS Plastic disk water filter by amiad arkal

Arkal twin lite plastic 3" disk filter with a detachable spine - Most valuable quality disc filter. huge disc filtration volume.
Up to 8.0 Bar [115 PSI]
maximum flow rate:
good water quality:      50 m3/h [198 gpm]
average water quality: 42 m3/h [132 gpm]
applications: main filtration for small plots, secondary (control) filtration - Pressure differential disc compression - High volume filter with increased flow capacity - Easy to open and close filter cover - Drain valve - Pressure gauge insertion point.
Available connections: Threads, Grooved or Universal Flanges
Product Leaflet

More details
ex Shipping
    Delivery time:3-5 Days
Add to cart
amiad old grooved disc 130 micron = 120 mesh

This disc sets will allow you to maintain amiad plastic and metal disc filters sold until year 2015.
Discs Outer diameter 128 mm & Inter diam. 104 mm
AMIAD "Old" discs are available only in 130 Micron [120 Mesh]

Sample text simply exists so you can see what your new block looks like. To replace the text click on it and press CTRL+A on your keyboard to select the text. Then enter your own text to replace it. Our beautiful content blocks make creating great looking websites easier than…

More details
ex Shipping
    Delivery time:6-10 Days
Add to cart
disc replacemets complete element for amiad plastic filters

For Amiad plastic manual 2"T , 2"TS and 3" disc filters.
New upgraded disc complete element replacement

Price includes Disc elements according to your filter size and type
Discs, Spine, Tightening Rings, Seals, O-rings etc*. According to the filter model and size selection.
Discs size Assisting Table
