6” M100-8,890A filter (M106-XLP) molded screen sst, hydraulic control, FILTOMAT

Name: 6” M100-8,890A filter (M106-XLP) molded screen sst, hydraulic control, FILTOMAT
Brand: Amiad
SKU: 050007-000058*
Price: 6876.75 USD
Availability: InStock

Amiad

050007-000058*

ex Shipping kg

Delivery time:15 to 25 w days

Add to cart

Description
More

6” M100-8,890A filter (M106-XLP) molded screen sst, BT controller, FILTOMAT

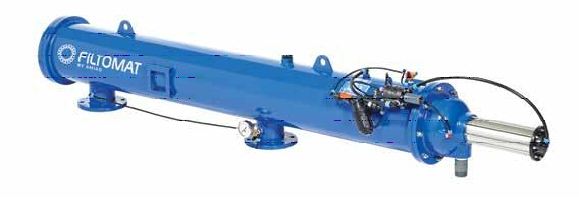

Filtomat Automatic Screen Filter by Amiad

6” M100-8,890A filter (M106-XLP), molded screen, 80 - 500 micron [180 - 30 mesh], hSmartphone BT contrller, Filtomat. Max Flow Rate 180 m³/h [793 gpm] Min. flow for Flushing at 2 bar [30 psi] 30 m³/h [132 gpm] Reject water volume per flushing cycle 150 liter [40 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 10 Bar [150 PSI]
Screen area 8,890 sqcm [1,378 sqin]
Filtomat 6" M106-XLP Brochure
M106-XLP Filtomat IOM Installation Operation Maintenance User Guide 6"

Filtomat by Amiad is suited for Irrigation, Industrial and Municipal water filtration. Heavy duty construction and performance. Fully automatic flushing operation.
Controlled by smartphone application iPhone or Android, Blue Tooth conductivity.
Size and weight on a palette: 256 x 55 x 69 cm > 182 Kg.
