PCJ-CNL PC Bubbler 20 to 40 L/H 10.6 to 21.1 GPH 13000 Un Bag

Netafim
21630-002170 + 27080-001700
ex Shipping kg
    Delivery time:8 to 28 days
Add to cart
  • Description
  • More

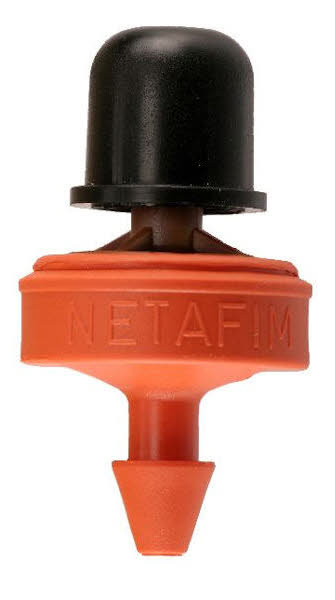

PCJ-HF-CNL Bubbler 20 to 40 L/H [ 10.6 to 21.1 GPH] 13000
 Units Bag.  For very sloppy terrains and for pulse irrigation where a high flow rate bubbler is needed. Mainly Dates and other plants that need large amount of water daily. Product consist of 4mm outlet pcj dripper and a cap, supplied separately.
PCJ-HF on line bubbler Netafim Brochure

PCJ-HF on linebubbler Pressure compensated Anti-Drain mechanism Self-flushing  mechanism. Recommended filtration: 200 micron / 80 mesh.  Filtration method selected based on the kind and concentration of dirt particles contained in the water.  Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone or a 100 Micron SST Screen shall be installed as well. Where sand/silt/clay solids exceed 100 ppm, pre treatment shall be applied. PCJ Charcteristics provides Internal very large water passages. Insertable into thick wall blank PE pipes (0.90, 1.00, 1.20 mm).  Injected bubbler, very low CV. High UV resistant. Resistant to standard nutrients used in agriculture. 4 different outlets: nipple, nipple with assembled cap, barb to 3 mm ID, barb to 4 mm ID micro-tube.

PCJ-HF on line Bubbler Pressure compensated Anti-Drain mechanism Self-flushing  mechanism.
Recommended filtration: 200 micron / 80 mesh.
Filtration method selected based on the kind and concentration of dirt particles contained in the water.
Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone or a 100 Micron SST Screen shall be installed as well. Where sand/silt/clay solids exceed 100 ppm, pre-treatment shall be applied.
PCJ Charcteristics provides Internal very large water passages. Insertable into thick wall blank PE pipes (0.90, 1.00, 1.20 mm).

PCJ-HF High Flow Netafim Bubbler with Cap available flow rates:


Benefits & Features
Pressure compensated Precise and equal amounts of water delivered over a broad pressure range, ensuring 100%
uniformity of water and nutrient distribution along the laterals. Anti-Drain (LCNL) mechanism Eliminates drainage and refill effect, and improves efficiency in pulse irrigation even in steep topography.
Continuously self-flushing Flushes debris throughout operation, while ensuring constant emitter operation even in challenging water qualities.
Flexible location Emitters can be positioned exactly where required. Number of emitters can be increased to increase the water quantities applied.
Allows the installation of "spider assembly", splitting the drip supply to a number of drip outlets.


Specifications
Pressure-compensated range according to table below.
Recommended filtration: 200 micron / 80 mesh. Filtration method selected based on the kind and concentration
of dirt particles contained in the water. Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone shall be installed before the main filter. Where sand/silt/clay solids exceed 100 ppm, pre treatment shall be applied according to Irrigationglobal.com expert instructions.
All PCJ product line have Internal very large water passages.
Insertable into thick wall blank PE pipes (0.90, 1.00, 1.20 mm).
Injected bubbler, very low CV. High UV resistant. Resistant to standard nutrients used in agriculture.
4 different outlets: nipple, nipple with assembled cap, barb to 3 mm ID, barb to 4 mm ID micro-tube.

10.6 GPH [20 l/h]13.25 GPH [25 l/h]15.8 GPH [30 l/h]26.4 GPH [35 l/h]21.1 GPH [40 l/h]
