PRESSURE REDUCING CONTROL VALVE

2L PRESSURE REDUCING CONTROL VALVE
Bermad
12002YP3BP00Z08T
ex Shipping kg
    Delivery time:8 to 14 days
Add to cart
  • Description
  • More

IR-2"L-120-Y-P-BSP-3W-PCP-Z5 (Test Point); Bermad

Lowest prices on the market

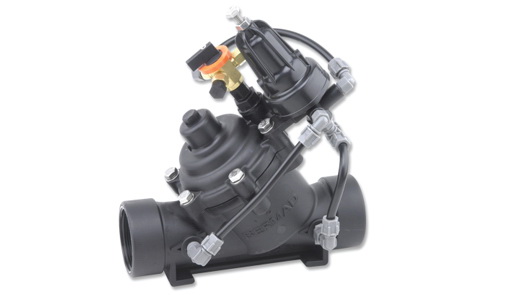

2"Large Body pressure reducing valve,
Size: 2"  female BSP thread Pressure test points
3Way manual control valve

Pressure regulation rating: 10 bar; 145 psi
Operating pressure range: 0.35-10 bar; 5-145 psi
Setting range: 1-7 bar; 15-100 psi
Setting ranges vary according to specific pilot spring. Please consult factory

Technical leaflet

The BERMAD Pressure Reducing Valve is a hydraulically
operated, diaphragm actuated control valve that reduces
higher upstream pressure to lower constant downstream
pressure and opens fully upon line pressure drop.
